Taizhou PinGuan Mould CO., Ltd. BMC Wash Basin Moulds

BMC wash basin mould is a specialized, high-precision tool used to manufacture wash basins through a compression molding process with Bulk Molding Compound (BMC), a thermosetting composite material . You'll find these molds primarily used to produce durable bathroom fixtures like washbasins, kitchen sinks, and vegetable washing basins .

To give you a clearer picture, here's a breakdown of the key aspects:

The Material: Why BMC?

BMC is the key to this mould's function. It's a dough-like mixture of unsaturated polyester resin, chopped glass fibers, and fillers . This combination gives the final wash basin several critical properties:



High Mechanical Strength: The glass fibers provide excellent tensile, bending, and impact strength .

Dimensional Stability: The material has a low coefficient of thermal expansion, meaning the basin will hold its shape accurately under varying temperatures

Durability: It offers outstanding resistance to water, grease, and corrosion, along with good heat resistance (usable long-term at 130°C) .

The Mould's Design and Function

The mould itself is a complex steel tool designed for the high-heat and high-pressure environment of compression molding .

The Process: An exact amount of BMC material is placed into the heated mould, which is then closed by a hydraulic press. The heat and pressure force the material to flow into every detail of the cavity, where it cures (hardens) to form the basin . The mould is then opened to remove the finished part .

Key Features: These moulds are engineered with heating systems and cooling channels to ensure the material cures evenly and efficiently . They also have precision demolding mechanisms to eject the complex shape cleanly without damage . Moulds that produce high-gloss, mirror-like finishes are at the top end of the precision scale .



Mould Types and the Industry

The design can vary based on the part and production needs:

Common Types: They are often built as single-cavity molds for one basin per cycle, though multi-cavity designs are possible for smaller parts .

Process Variations: While compression molding is the most common method, BMC can also be shaped via transfer or injection molding for parts with more complex geometries .

In essence, BMC wash basin mould is a sophisticated manufacturing tool that balances complex engineering with material science to efficiently produce a durable, everyday household item.

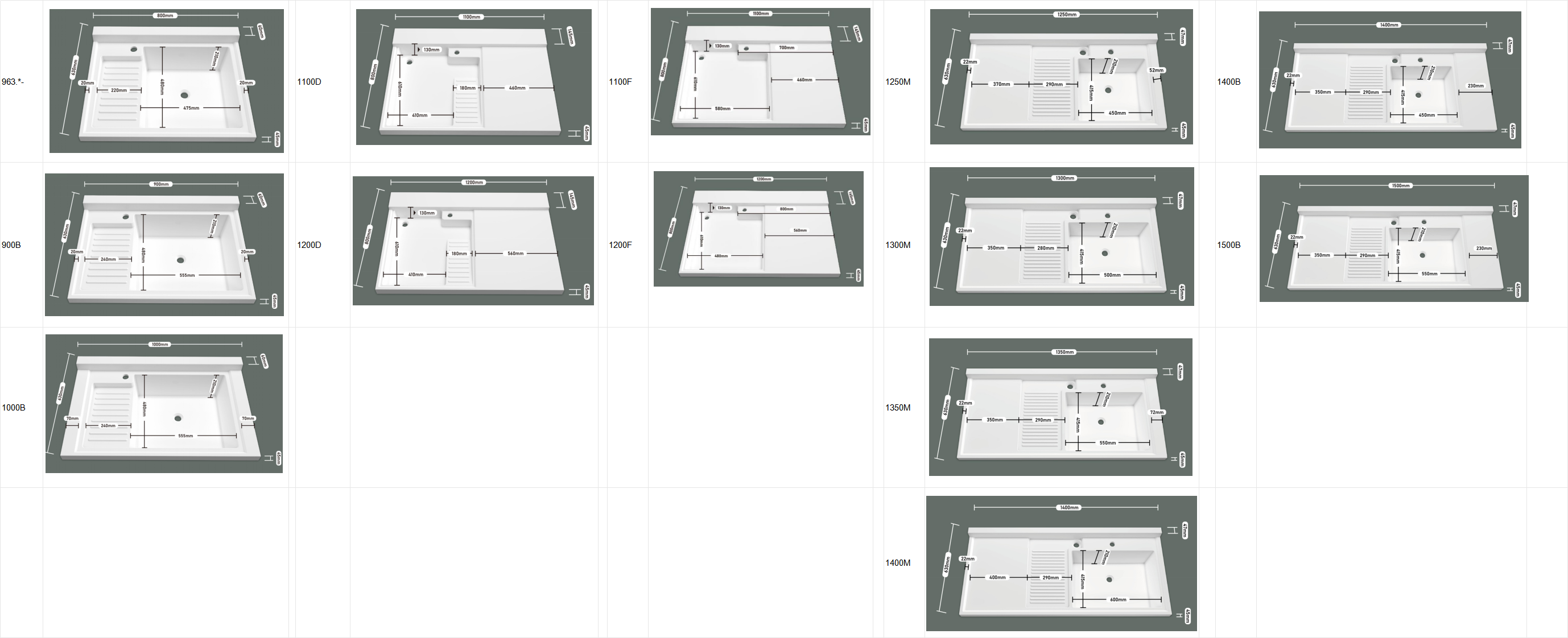

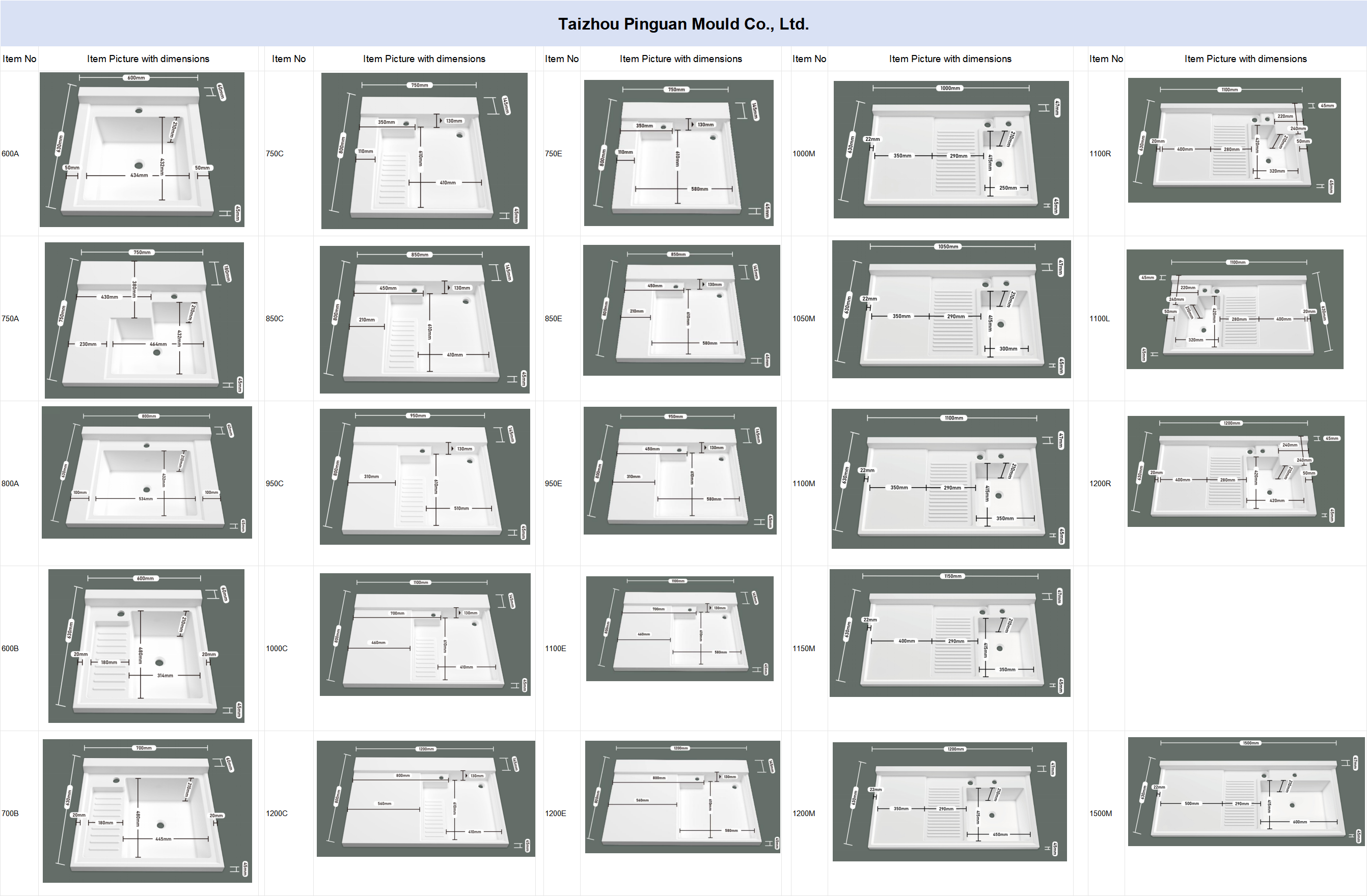

Taizhou Pinguan Mould Company, as a professional BMC Mould manufacture, we have many experiences on designing and manufacturing different shapes of BMC wash basin moulds, the following are some of our designs for our customers:
